Usability & UX Guidelines

Unnecessary complexity and bad UI often scare users away from good software. To avoid this terrible fate, please always take usability and good user experience into account when contributing to Qubes OS.

If you plan to contribute to GUI tools, please read these guidelines. Additional information can also be found in our visual style guide.

Ease of Use

In open source software, a good user interface should not only enable users to achieve their goals, but also allow them to remain in control of the process. The UI should neither overwhelm the users with the amount of information presented nor hide important context from them. In the words falsely attributed to Albert Einstein: our goal is to make things as simple as possible, but not simpler. Make things simple, but removing important elements in the name of simplicity or getting rid of valuable functionality for simplicity’s sake is making them too simple.

Make sure that the UI you design adheres to the following principles.

Do not waste the user’s time

  • the program should not require extensive configuration

    example: you don’t need to set the policy directory used by the Qubes Policy Editor - the program lists available policy files for you

  • the most typical and most recommended workflows should require the least user time and attention

    example: Create New Qube opens at the typical use-case (a new app qube) with options such as “template” and “networking” set to system defaults; the user only has to enter qube name and click Create

  • the defaults should be sensible - they should work for most use cases and not require changes in most situations, if at all possible

    example: default settings for newly created qubes

  • minimize repetitiveness: if possible, avoid multiple clicks or multiple steps for operations that can be implemented with less clicks/steps

    example: in the Devices widget, if a device is already attached to a qube, you have an option to Detach the device, but also to Detach and Attach to another qube - the user doesn’t have to do two actions, but only one

Make the UI resilient to errors

  • users should not be able to break the program (or the entire system) or enter an unrecoverable state

  • users should not be able to compromise the integrity and security of their system accidentally

  • as far as possible, there should be a possibility to undo actions

  • if some actions cannot be undone (for example deleting a qube), they should be impossible to perform accidentally (in case of Qubes OS, you have to type the qube name to delete it, even using GUI tools)

  • the defaults should be reasonably secure

  • avoid leaving users stranded - if there is an error message, there should also be guidance on how to recover or (preferably) an actionable solution

Reduce cognitive load

  • show only the relevant information

    example: domains widget does not show qubes that are not running and not consuming resources

  • use simple and understandable language

    when in doubt, like the author of this document, always use the simpler word and don’t write like it’s a master’s thesis in English literature

  • make it easy to discover and understand features and available options

    example: Qubes Global Config aims to show and describe multiple configuration settings that otherwise were only available via CLI and knowing about them

  • do not expect the user to remember: remind them of past actions and choices

    example: during the update process, show which qubes are being updated right now, which are still queued for updated and which are done updating

  • the defaults should make sense for most use cases and not require the user to verify them thoroughly

    example: a new qube will use the default template and default networking settings

Language

There will always be the need to communicate things to users. In these cases, an interface should aim to make this information easy to understand. The following are simple hints to help achieve this - as with any writing advice, those are guidelines, not laws.

Avoid acronyms

Acronyms are compact and make good names for command line tools, but until the user learns an acronym’s meaning, it is gibberish. Avoid introducing new acronyms, unless necessary, and provide explanations if the acronym is uncommon. Some acronyms are more familiar than the full name - it is strongly recommended to use USB instead of Universal Serial Bus, for example.

Use simple words

Use the minimum amount of words needed to be informative. Go with common words that are as widely understood. “Unneeded” is better than “superfluous”, “correct” is better than “rectify” and “pointless” is better than “nugatory”.

Follow current Qubes OS terminology

  • use disposable [qube] instead of DVM or Disposable Virtual Machine

  • use networking or net qube instead of NetVM

  • use qube instead of virtual machine, container, domain or domU

  • use terminology consistent with other user-facing tools, not necessarily with internal programming details

Avoid technical words

Technical words are usually more accurate, but they often only make sense to technical users and are confusing and unhelpful to non-technical users. Strive for accuracy and usefulness above strict technical correctness. If at any point you wish to add to a label a “well, actually”, resist the temptation.

Prefer a common, understandable concept to detailed technical explanations of a particular implementation

  • Use disk space instead of root.img, since while not quite accurate, it makes contextual sense

  • Use saving instead of savefile as the former is the action trying to be completed

  • Use Qubes instead of qrexec-daemon as it gives better context on what is happening

Avoid redundancy

  • do not over-use words like qube or domain in long lists

  • it is preferable to create common categories/headers than to repeat a single category multiple times

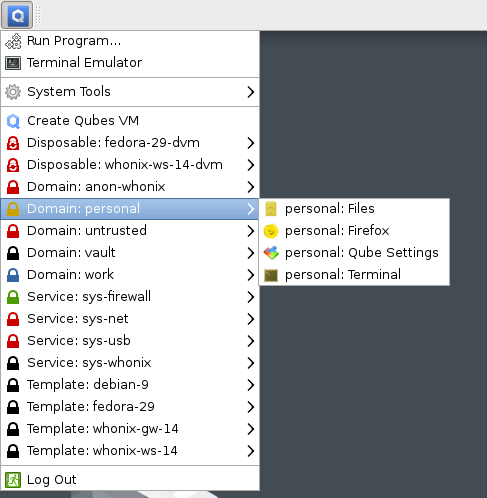

Qubes 3.2 system menu with redundant 'domain' prefix to every qube name

System menu in Qubes 3.2 used to make both of those mistakes: redundant ‘domain’ prefix and no category headers.

Usability and Accessibility

Usability and accessibility are always tied together. When designing interfaces for Qubes OS, follow general good UI practices, striving for understandability, clarity of interactions, avoid surprising the user, avoid - as far as possible - actions that cannot be undone and strive to make it easy to do the correct/secure action and difficult to do the insecure action.

Use the checklist below to verify fundamental accessibility and usability principles:

  • visual readability

    • there is sufficient contrast between text and background (use WCAG level AA guidelines as minimum when in doubt)

    • UI remains readable in dark mode and in light mode

  • color independence

    • important information is never communicated solely through color: labels, text, shapes etc. accompany all color-coded information

  • text scaling support

    • the program works for large font sizes (including what you might consider absurdly large)

  • keyboard/mouse accessibility

    • all actions can be reached and performed when using only the keyboard and only the mouse without exorbitant leaps of logic or reading the documentation

    • tab-order for controls is logical

  • focus visibility

    • it is always visible which element has focus, when using keyboard navigation

    • focus is not irrevocably lost on some operations

  • clarity and communication

    • language used in the GUI is clear, understandable and simple; avoid complex sentences and overly complex vocabulary

    • error messages are specific and visible; if possible, errors are accompanied by information about how to recover from them (ideally, this would be done automatically, but of course this is not always possible)

    • validation is always clearly communicated: the user can easily understand why certain inputs are incorrect

    • error and validation feedback does not rely on timing

Consistency and UI Elements

Concepts, names, icons, interaction patters and styling should be consistent across different tools. When in doubt, pattern the behavior of your application on other Qubes OS tools.

Particular GUI patterns used in Qubes OS are:

Qube names

Qube name should be whenever possible accompanied by the appropriate qube icon in the correct color.

Examples:

part of Qubes OS Global Config: two dropdowns used to configure Clock qube and Default net qube. In both dropdowns, the qube names are accompanied by the qube icon to their left

Dropdowns in Qubes OS Global Config contain icons. Always use existing dropdown widgets if possible: they generally already provide the icon display.

part of Create New Qube Dialog showing selected net qube with its icon to the left of the qube name

In Create New Qube Dialog, selected network qube is displayed with its icon and also with the qube color used to color the qube name, to reinforce the qube-label association.

list of running qubes from the domains widget; each qube name has the qube icon to the left of it

In the domains widgets, every qube is always accompanied by its icon.

Action buttons

If possible, any button should have a brief and understandable description of the action it will cause if pressed written on the button itself. Avoid generic “OK” buttons. Usually only one button should be marked visually as the main “confirmation” button. If there are multiple buttons who could serve this role, individual discernment must be used.

Use flat buttons.

Use the following CSS classes (with appropriate text size and padding) for confirm and cancel buttons:

.confirm-button {
    background: @blue-500;
    border-radius: 2px;
    color: white;
    font-weight: 600;
}

.cancel-button {
    background: @gray-100;
    border-radius: 2px;
    border: 1px solid @gray-200;
    font-weight: 600;
}

For color definitions, see below.

Examples:

part of Qubes OS Global Config: three buttons at the bottom of the screen. Blue button with text "Apply Changes and Close", and two flat normal buttons with text "Apply Changes" and "Cancel"

The visually marked button is “Apply Changes and Close”, because this is assumed to be the typical interaction with the tool.

part of Policy Editor: three buttons at the bottom of the screen. Flat button with text "Quit" and two blue buttons with "Save changes" and "Save and exit"

Button text should be brief and clear. Two actions seemed to be typical for the interaction with the tool (saving and exiting and saving without exiting), so both are emphasised.

Icons

Core of Qubes OS Icon Set is the set of qube-related icons that can be found in the qubes-artwork repository.

Those icons represent possible qube classes and colors. For mapping of qube icon to qube type, see the Glossary.

Most symbolic icons in Qubes GUI are taken from lucide.dev (MIT-licensed open source icon set).

The following stroke width is generally recommended for the following icon sizes (adjusted when needed for clarity and cohesion):

  • 16px = 1.5px stroke

  • 24px = 2px stroke

  • 32px = 3px stroke

  • 48px = 4px stroke

  • 64px = 6px stroke

If any further icons are needed, base them on lucide.dev icon set.

Colors

For GUI elements, use the following subset of Tailwind color system (from Tailwind CSS system).

Colors

Color

50

100

200

300

400

500

600

700

800

900

950

Gray

 gray-50
gray-50
#f9fafb
 gray-100
gray-100
#f3f4f6
 gray-200
gray-200
#e5e7eb
 gray-300
gray-300
#d1d5db
 gray-400
gray-400
#9ca3af
 gray-500
gray-500
#6b7280
 gray-600
gray-600
#4b5563
 gray-700
gray-700
#374151
 gray-800
gray-800
#1f2937
 gray-900
gray-900
#111827
 gray-950
gray-950
#030712

Neutral

 neutral-50
neutral-50
#fafafa
 neutral-100
neutral-100
#f5f5f5
 neutral-200
neutral-200
#e5e5e5
 neutral-300
neutral-300
#d4d4d4
 neutral-400
neutral-400
#a3a3a3
 neutral-500
neutral-500
#737373
 neutral-600
neutral-600
#525252
 neutral-700
neutral-700
#404040
 neutral-800
neutral-800
#262626
 neutral-900
neutral-900
#171717
 neutral-950
neutral-950
#0a0a0a

Red

 red-50
red-50
#fef2f2
 red-100
red-100
#fee2e2
 red-200
red-200
#fecaca
 red-300
red-300
#fca5a5
 red-400
red-400
#f87171
 red-500
red-500
#ef4444
 red-600
red-600
#dc2626
 red-700
red-700
#b91c1c
 red-800
red-800
#991b1b
 red-900
red-900
#7f1d1d
 red-950
red-950
#450a0a

Orange

 orange-50
orange-50
#fff7ed
 orange-100
orange-100
#ffedd5
 orange-200
orange-200
#fed7aa
 orange-300
orange-300
#fdba74
 orange-400
orange-400
#fb923c
 orange-500
orange-500
#f97316
 orange-600
orange-600
#ea580c
 orange-700
orange-700
#c2410c
 orange-800
orange-800
#9a3412
 orange-900
orange-900
#7c2d12
 orange-950
orange-950
#431407

Yellow

 yellow-50
yellow-50
#fefce8
 yellow-100
yellow-100
#fef9c3
 yellow-200
yellow-200
#fef08a
 yellow-300
yellow-300
#fde047
 yellow-400
yellow-400
#facc15
 yellow-500
yellow-500
#eab308
 yellow-600
yellow-600
#ca8a04
 yellow-700
yellow-700
#a16207
 yellow-800
yellow-800
#854d0e
 yellow-900
yellow-900
#713f12
 yellow-950
yellow-950
#422006

Green

 green-50
green-50
#f0fdf4
 green-100
green-100
#dcfce7
 green-200
green-200
#bbf7d0
 green-300
green-300
#86efac
 green-400
green-400
#4ade80
 green-500
green-500
#22c55e
 green-600
green-600
#16a34a
 green-700
green-700
#15803d
 green-800
green-800
#166534
 green-900
green-900
#14532d
 green-950
green-950
#052e16

Blue

 blue-50
blue-50
#eff6ff
 blue-100
blue-100
#dbeafe
 blue-200
blue-200
#bfdbfe
 blue-300
blue-300
#93c5fd
 blue-400
blue-400
#60a5fa
 blue-500
blue-500
#3b82f6
 blue-600
blue-600
#2563eb
 blue-700
blue-700
#1d4ed8
 blue-800
blue-800
#1e40af
 blue-900
blue-900
#1e3a8a
 blue-950
blue-950
#172554

Purple

 purple-50
purple-50
#faf5ff
 purple-100
purple-100
#f3e8ff
 purple-200
purple-200
#e9d5ff
 purple-300
purple-300
#d8b4fe
 purple-400
purple-400
#c084fc
 purple-500
purple-500
#a855f7
 purple-600
purple-600
#9333ea
 purple-700
purple-700
#7e22ce
 purple-800
purple-800
#6b21a8
 purple-900
purple-900
#581c87
 purple-950
purple-950
#3b0764

Desktop Environments

The desktop GUIs that QubesOS supports out of the box are KDE and Xfce. All GUI tools should function well under both of those desktop environments. There is also a significant minority of users who use tiling desktop environments. Ideally, GUI tools should also function in those desktop environments.

Both of those desktop environments have their own human interface guidelines, and we suggest you familiarize yourself with the platform you developing for.

Further Learning & Inspiration

Learning to make well designing intuitive interfaces and software is specialized skillset that can take years to cultivate, but if you are interested in furthering your understanding, we suggest the following resources:
